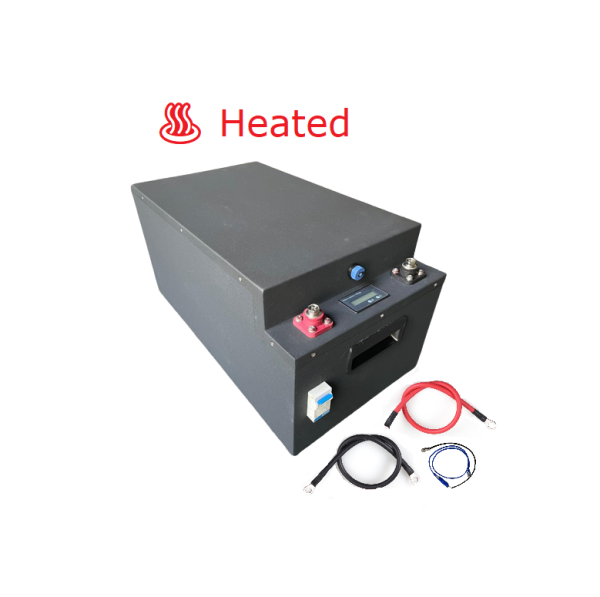

Heated 12 Volt 400 Amp Hour LIFEP04 Lithium Battery | Cold Weather Applications | 12.8V | 5kWh
$2,599.00
BROWSE OTHER SIZES: 12 Volt | 24 Volt | 48 Volt | 96 Volt
Lowest Prices EVER on 400Ah Cold Weather LIFEP04 Batteries!
-Operating Temperature Range: -20 to 45°C (-4 to 113°F)
-Free Shipping (Excludes HI, PR, AK)
-Save over $2000 when compared to (4) Relion RB100-LT at $5500+!
-Paypal Accepted
-4 Year Warranty
-Lithium Battery Dealer Since 2010
Share:
Description
12 Volt 400 Amp Hour LIFEP04 Lithium Battery for Cold Weather Applications with Built In Heating Element, constructed using 3.2V LIFEP04 Lithium Cells, 12.8V Actual Voltage, Safe for use in parallel for higher capacity systems, Each battery has a true 400 Amp Hour Capacity, 5kWh battery storage, 200A Continuous Discharge (each battery), Each battery has the most updated SMART BMS System with Automatic Heating Function and PC Connectivity via RS485 Port (Cable included), The standard metal case has dimensions of L490 x W270 x H240 (mm), Weight 100 – 110 lbs each depending on options, Black or White Standard Colors, Imported, Stock Image Shown could vary by application, custom cases available for any application. Please allow 60 Days for Delivery on Heated Batteries.
HEATING FUNCTION
These Lithium Batteries are equipped with an optional intelligent internal heater module in the metal case. This heating function will automatically activate when ambient temperature of the battery reaches freezing or sub-freezing = 0°C or 32°F, ensuring the battery’ environment stays warm enough for safe charging. The Heating Module draws just 35 Watts with a working voltage range of 8.8V to 15V and working current of 3 Amp to 5 Amp. When the batteries detects that the ambient temperature is lower than 0°C/32°F, then BMS will turn on the heating function if BMS of the battery detects power supply from Charger/Solar/Generator. If no charge source is detected, the heater module stays off. When the battery temperature gets to 10°C/50°F, the heating function will turn off and the battery can be recharged normally.
DOWNLOADS
//DOWNLOAD DATA SHEET (PDF)
PROGRAM DOWNLOAD: specializedpower.net/batteries/smart-bms-tools.zip
Steps to Connect:
1. Plug the USB to laptop, there will be operation instruction to download a drive on the PC or Laptop.
2. Install the software package (zip file) “pBMStools” on the laptop. You can download it below (zip file) or It will be sent via email.
3. Unzip it and run the application “PbmsTools V2.5FN”
4. Turn the battery on, plug another side of the communication box to the battery
5. Check the data from the software box and you will view the charge/discharge/temp information.
HEATED BATTERY INSTRUCTIONS
//Download Temp Settings Instructions (pdf)
COMPATIBLE WITH 12 VOLT SOLAR INVERTERS
Such As Outback, Magnum, Schneider, Victron and others!
Magnum
CSW412, CSW1012, CSW1012-NG, CSW1012W,CSW2012, CSW2012-X, CSW2012-HX, CSW2012-HMWX, 12LP10, 12LP10H, 12LP10HR, 12LP10R,12LP15, 12LP15A, 12LP15AR, 12LP15H, 12LP15HR, 12LP15R, CMW412, CMW1012, CMW1512, CMW3012H, MM612, MM612-U, 12LP10, 12LP10H, 12LP10HR, 12LP10R, 12LP15, 12LP15A, 12LP15AR, 12LP15H, 12LP15HR, 12LP15R, 12/3600N, 12/3600DN, 12/3000N, 12/3000DN, 12/2400N, 12/2400DN, 12/1800N, 12/1500N, 12/1200N, 12/800N, 12/400N, 12Z8NV
Outback Power
FXR2012A, FXR2012E, VFXR2812A, VFXR2612E, FX2012MT, FX2012EMT, VFX2812M, VFX2612EM
